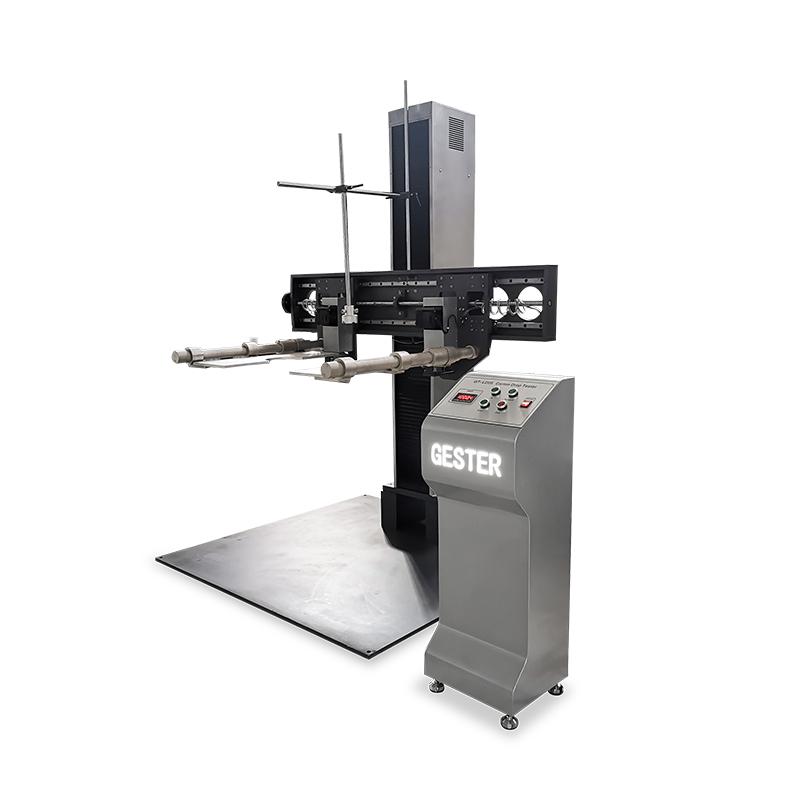

GT-LC05-2 Double Wings Drop & Falling Tester
Product Introduction
Application:
This packaging drop test equipment applicable for the assessment of the package by the degree of influence in the actual drop impact during transportation, loading and unloading process, and assess the impact resistance for packages in the transportation process and the design reasonability for packaging.
Standards:
ISO 2248, JIS Z0202, GB/T4857.5, ISTA
Structure
Double Wings Drop Falling Tester With advanced structure, during the dropping process, the goods’ bracket moves downward quickly first and then conducts rotary movement, to ensure that bracket and packaging sample will be separated freely, and achieve free drop for packaging sample. This machine has the advantages of low impact vibration, stable and reliable, and accomplish the dropping tests in the fields of faces, edges, corners.
Double Wings Drop & Falling Tester Key Specifications
| Model | GT-LC05-2 |
| Display mode | Digital display |
| Drop height | 300~1500mm |
| Dimension of drop panel | (W×L)1500×1500mm |
| Max weight of sample | 100kg |
| Max dimension of sample | (L×W×H)1000×1000×1000mm |
| Transfer method | Electric drive |
| Single-wing area | (W×L)250×700mm |
| Power | 1∮, AC220V,50Hz, 1/2P |
| Weight of machine | About 1021kg |
| Dimension | (L×W*×H)1765×1510×2415mm |
