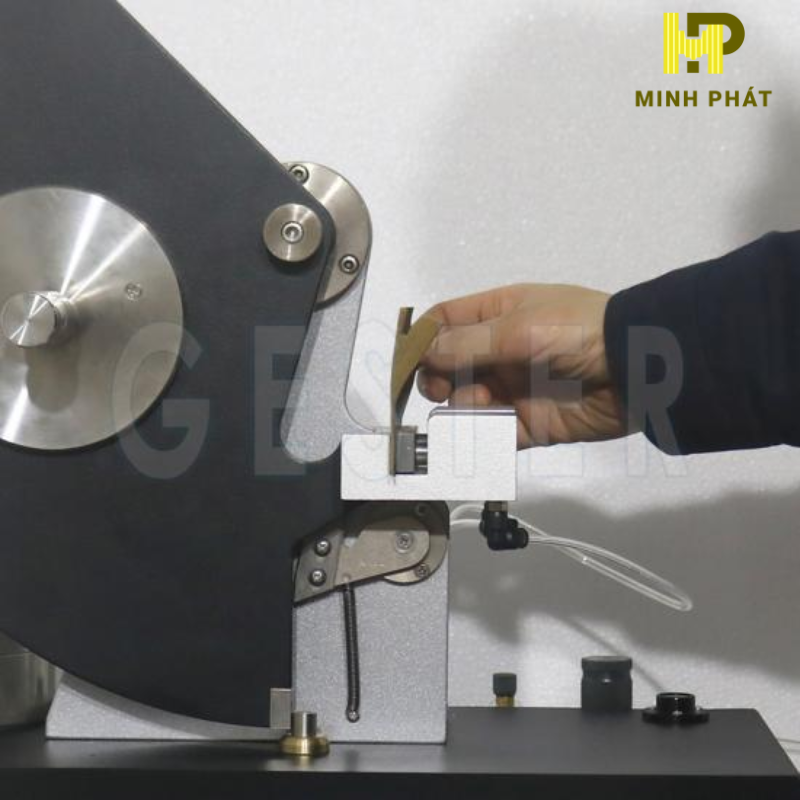

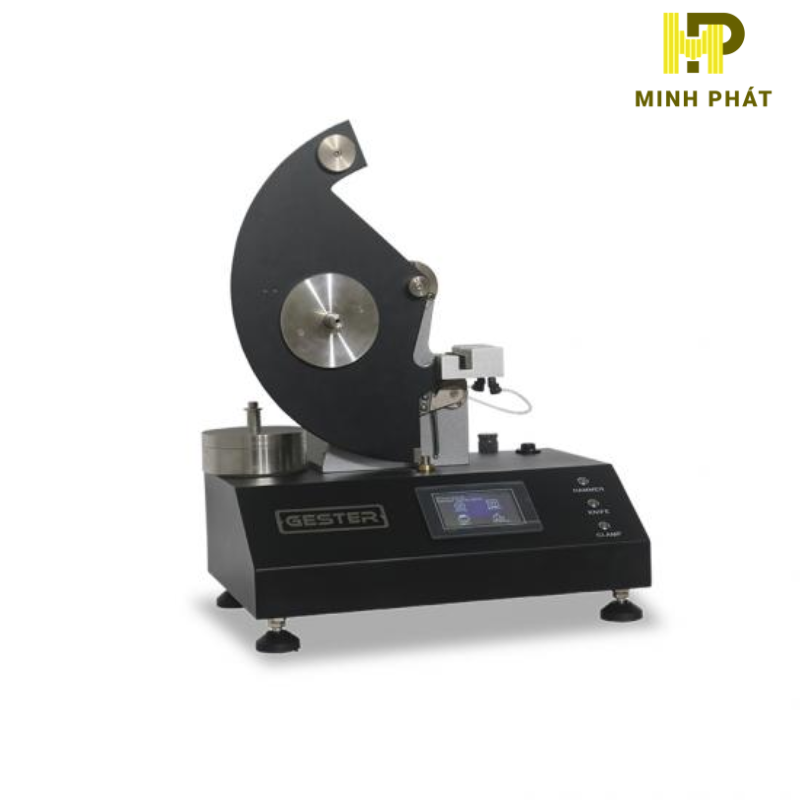

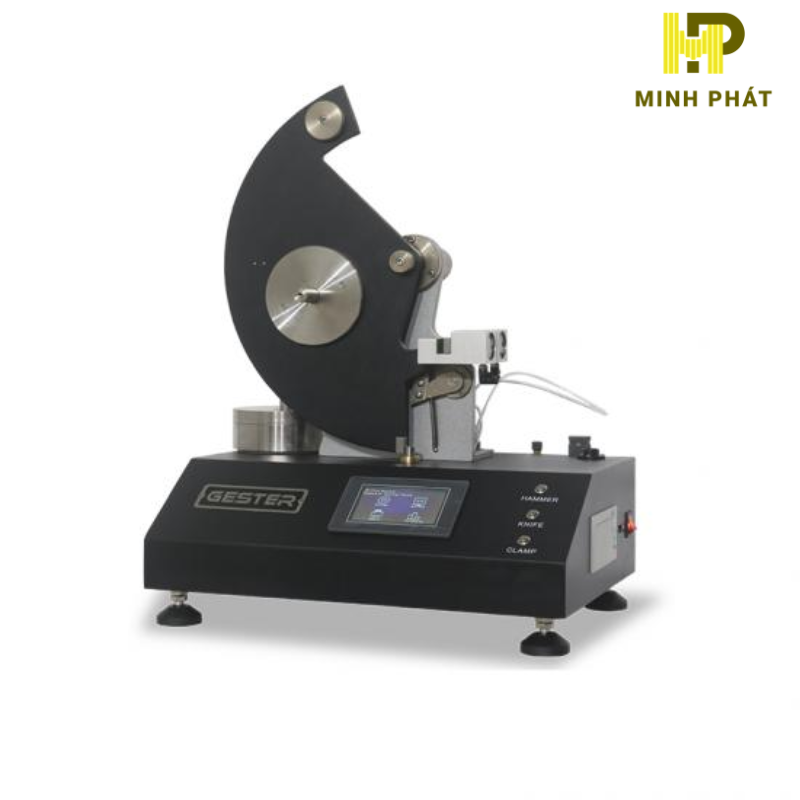

Product Introduction of elmendorf tearing strength tester
Application:This Elmendorf Tearing Tester is designed for tearing resistance of textile, non-woven fabric, paper, paper board, thin film, ventilation tape, metal sheet material and etc. Standards: |
| Textile | GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149 |
| Paper | GB/T455, APPITA P400, ASTM D689, BS 4468,
CSA D9, DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11, SNV 198482, TAPPI T414, UNI 6444 |
| Plastic | GB/T11999, ISO6383-2, JIS K7128-2 |
| Non-woven | ASTMD5734 |
Dimensions of elmendorf tearing strength tester
Key Specifications of elmendorf tearing strength tester
| Range of Tearing Force | 16N / 32N / 64N |
| Accuracy | ≤±0.2％F·S |
| Incision Length | 20+/-0.2mm |
| Rip Length | 43mm |
| Sample clamping methods | Pneumatic clamp |
| Power supply | AC 220V 50/60HZ 100W |
| Dimensions | 560 x 420 x 480mm (L x W x H) |
| Weight | 40kg |
Accessories
| Standards accessories | 1pc | Pendulum B (16N) |
| 1pc | Pendulum C (32N) | |
| 1pc | Sample Template | |
| 1pc | English operation software | |
| 1pc | Cable connect with PC | |
| Optional accessories | 1pc | Air compressor |
| 1pc | Desktop Computer |
Application Industry of elmendorf tearing strength tester
All kinds of materials can be tested on the Electronic Elmendorf Tearing Tester
