Product Introduction
Application:

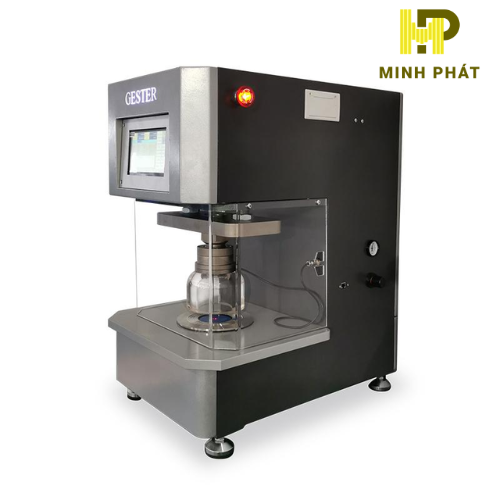

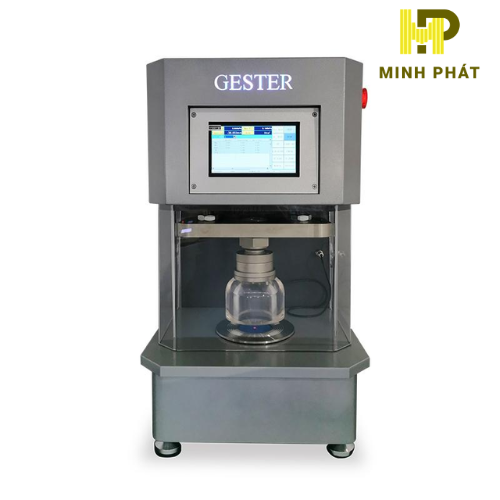

Bursting Strength Tester is used for determining the bursting strength of woven or knitted fabrics, non-woven, paper, leather and board by application of a pneumatic load under a rubber diaphragm of a specific area. Provide with a digital readout of pressure with peak value hold facility, renewable rubber diaphragms, and manual clamping device with acrylic bell, forward reverse and neutral drive system. Provide accurate elongation information of fabrics, up to 0.1mm.
Feature
1.This fabric bursting strength tester use pneumatic method, meet multinational standards and equipped with several changeable test clamp.
2.The simple interface touching screen controller is easy and simple to handle.

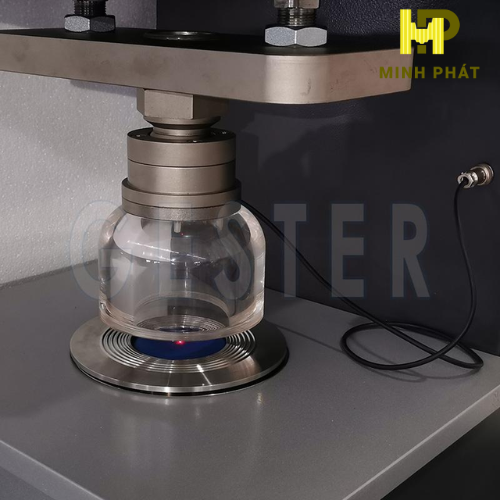

3.The specimen was clamped firmly by the pneumatic force which can also save effort.
4.The test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily
5.The bursting strength testing machine can induct the burst automatically which is much more sensitive and reliable.
6.The AC servo drive system with low noise and wide range of applications.
7.The fabric bursting strength tester bring saving and printing functions and support on-line operation.
8.Provide on-line interfaces, professional detection software which can be used to analysis testing result.
