Temperature and Humidity Climatic Test Chamber GT-C52
Product Introduction of temperature and humidity test chamber
| Application of climatic test chamber:
Temperature Humidity Test Chamber is for conditioning of samples prior to testing. It also can be used for a variety of materials of high – low temperature alternating test. The test temperature, humidity, time can be programmed. Provides conditions of temperature form -40degree to +150degree and of humidity form 20% to 98%. Standards of climatic test chamber: |

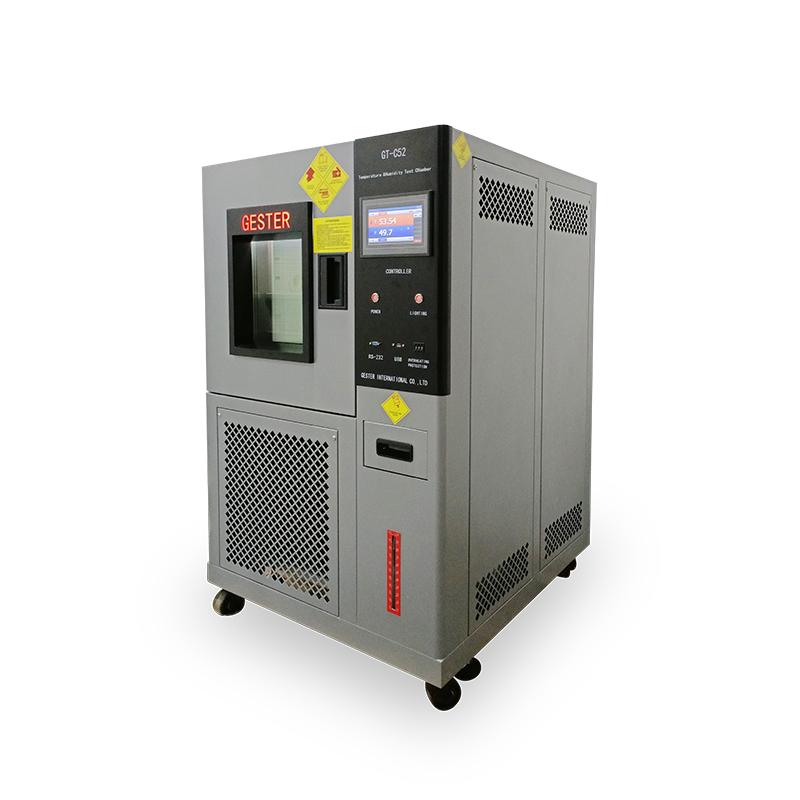

picture of temperature humidity chamber
Feature
Temperature and Humidity Climatic Test Chamber: High quality appearance, Matte Line processing on the surface, and embedded and non-counteractive handle, easy operation, safe and reliable.
Temperature Humidity Chamber Test Space Options
| Capacity | 80L | 150L | 225L | 408L | 612L | 1000L |
| Inside dimension
WxHxD(cm) |
40x50x40 | 50x60x50 | 50x75x60 | 60x85x80 | 80x90x85 | 100x100x100 |
| Outside dimension
WxHxD(cm) |
88x136x99.5 | 100x146x110 | 123x136x120 | 110x171x137 | 130x181x137 | 152x210x127 |
| Temperature range | -20～150℃, -40～150℃, -60～150℃ optional (can be custom-made) | |||||
Key Specifications of constant temperature and humidity chamber
| Humidity range | 20%～98%, can be set. | ||
| Rate of temperature increasing | Room temperature～150℃ | About 45 minutes(non-linear
no-load, about 3.5℃/minute |
|
| Room temperature～-20℃ | About 45 minutes(non-linear
no-load, about 1.2℃/minute) |
||
| Machine precision | Control accuracy (test precision) | Temperature | +/-0.5℃ |
| Humidity | +/-1%RH | ||
| Distribution accuracy (uniformity) | Temperature | +/-1.0℃ | |
| Humidity | +/-2%RH | ||
| Environment temperature | 5℃-28℃ | ||
| Environmentrelative humidity | ≤85%RH | ||
| Power voltage | 220V AC(+/-10%), protect ground wire, ground resistance≤4Ω. | ||
| Frequency | 50+/-0.5Hz | ||
| Power switch | Air-break switch(40A, knife switch or outlet is prohibited to use.) | ||
| Power | 4.5KW | ||
| Humidification water | Resistivity(≥500MΩ) | ||
| Requirement of ambient air quality | Do not contain high concentration dust and flammable gas, without strong electromagnetic radiation source nearby. | ||
| Power supply | AC1￠3W 380V 50/60HZ, voltage change allowed value: ±10% of fixed voltage. | ||
| Max loading capacity | 8KVA | ||
| Max operating current | 30A | ||
Application Industry of temperature and humidity test chamber
Below material can be tested on the Temperature Humidity Climatic Test Chamber
