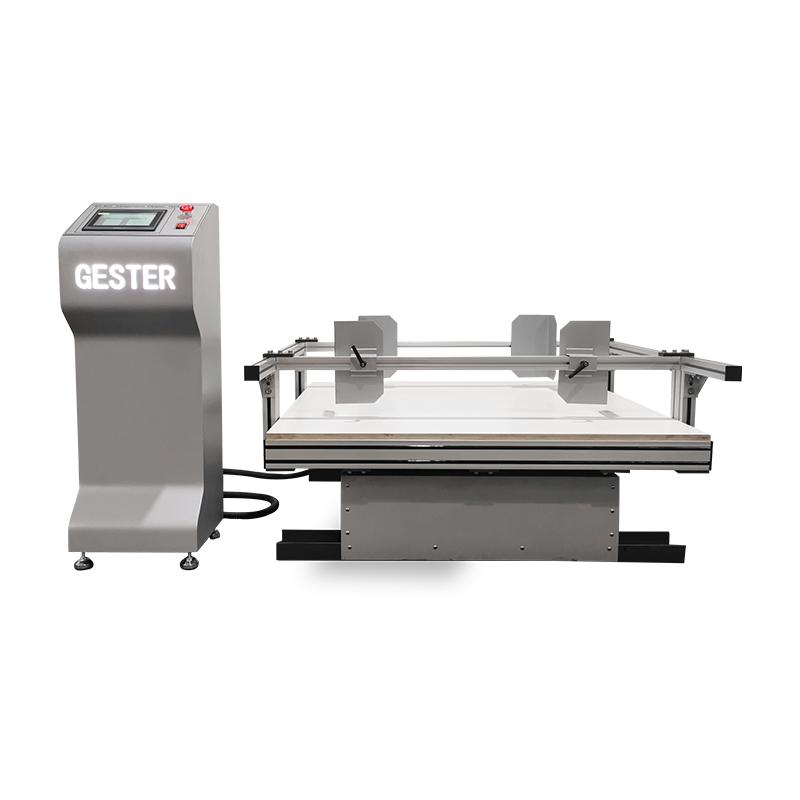

Transportation Vibration Tester GT-M11
Product Introduction
| Application:
The Transportation Vibration Tester is to simulate the goods in transit, encounter different road conditions such as bumpy, uphill, downhill, cornering, etc., products in the car produce the collision between goods and goods or goods and car and the extrusion between goods and goods, etc., causing damage to the products, so that the quality of goods and goods packaging can be further improved. Mainly used for vibration test of toys, electronics, furniture, gifts, ceramics, communications, equipment, computers and car parts. Standards: |
Feature
| 1. vibration testing equipment have buffer start function, work medium noise very low.
2. Digital meter shows the vibration frequency. 3. Synchronization silencing belt transmission. 4. The sample clamping adopts guide rail type, easy to operate and safe. 5. The Vibration Tester Machine base adopts heavy channel steel with vibration damping pads, easy to install, operate steadily, no need to install foot screws. 6. Dc motor speed regulation, smooth operation, strong load capacity. 7. Rotary vibration (commonly known as monkey type), Accord with standard of Europe and the United States transportation. |
Transportation Vibration Tester Key Specifications
| Model | GT-M11 |
| Vibration frequency | 100-300rpm |
| Frequency precision | 2rpm |
| Max load capacity | 100kg |
| Displacement (Vibration amplitude range) | 25.4mm (1 inch) |
| Vibration mode | Reciprocating (Rotary) |
| Simulation vehicle speed | 25~40km/h |
| Standard motions | Rotary DC Motion (Standard) |
| Standard table Size | 1200x1200mm |
| Timing functions | 99H99M |
| Power supply | AC 380V 50/60Hz |
| Dimensions | Main body: 1300×1320×880mm (L×W×H)
Console: 360×320×1030mm (L×W×H) |
| Weight | About 300kg |
| Standards | ISTA, ASTM D999 |
Application Industry
All kinds of packages can be tested on the Transportation Vibration Tester
