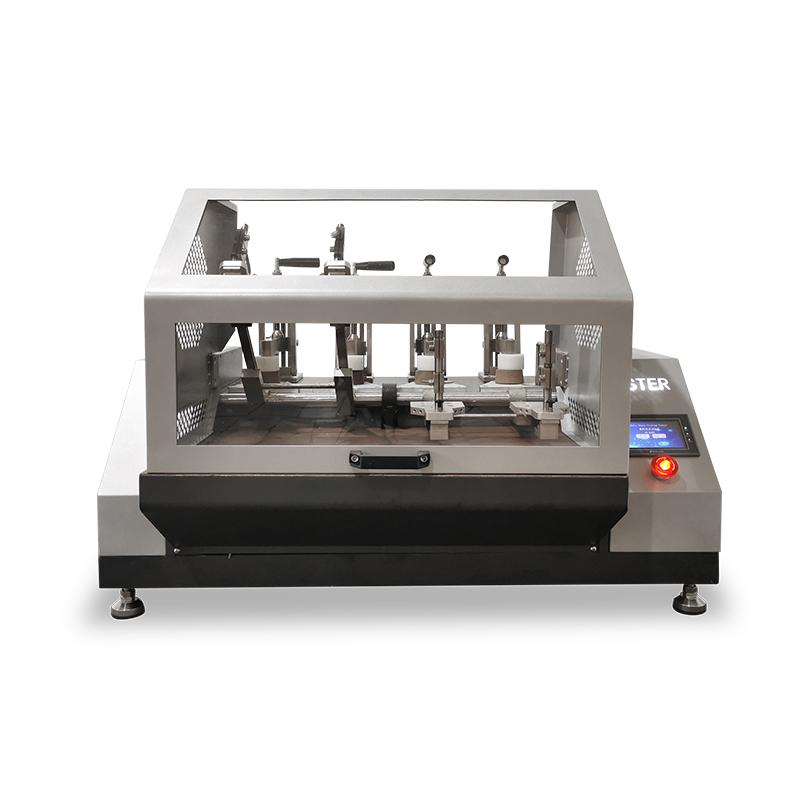

Whole Shoes Flexing Tester GT-KA01-2
Product Introduction
| Application:
The whole shoes flexing tester is used to test finished shoes, like sports shoes, casual shoes, work shoes etc. And determine its flexibility resistance or indicating the cracks of shoe or shoe sole through reciprocating flexing movements under the specified angle and frequency. |
Feature
1. Shoe Flexing Testing Machine Equipped with acrylic protective cover, which make sure safe operation and low noise.
2. Heel fixture using linear slide for smooth movement with little resistance.
3. Freely set running times and machine automatically stop after test finished.
Key Specifications
| Model | GT-KA01-2A | GT-KA01-2B |
| Test sample | Test 4 samples simultaneously | Test 2 samples simultaneously |
| Control method | Touch screen control | |
| Bending angle | 0~ 90° (adjustable) | |
| Test speed | 0°~50°, adjustable speed range: 60~230 rpm
50°~90°, adjustable speed range: 60~140 rpm |
|
| Counter | 0-99,999,99 (7 digits) | |
| Power | 1∮AC 220V 50/60HZ 3A | |
| Dimension(W×D×H) | 95 x 76 x70cm | 58 x 74 x 72 cm |
| Weights | 223kg | About 150kg |
| Standards | SATRA TM92, ISO 24266 Method A,
HG/T 2871-2022 Method B |
|
Accessories
| Standards accessories | 1set | Heel clamp |
| 1set | Plastic pad | |
| 1set | Spanner | |
| 1pc | Power line |
Application Industry
All the material blow can be tested on the Shoes Flexing Tester
