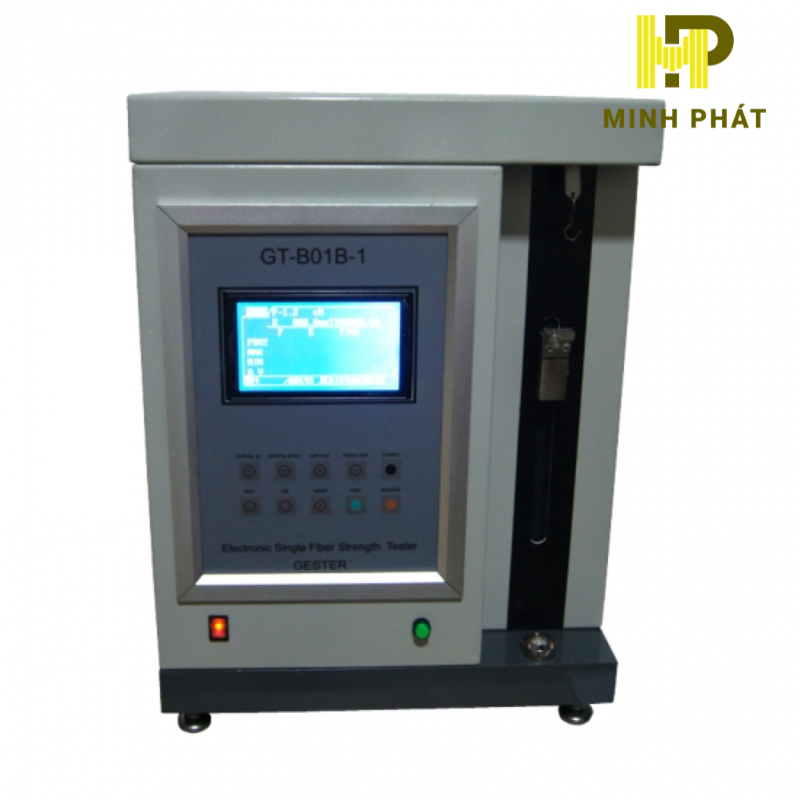

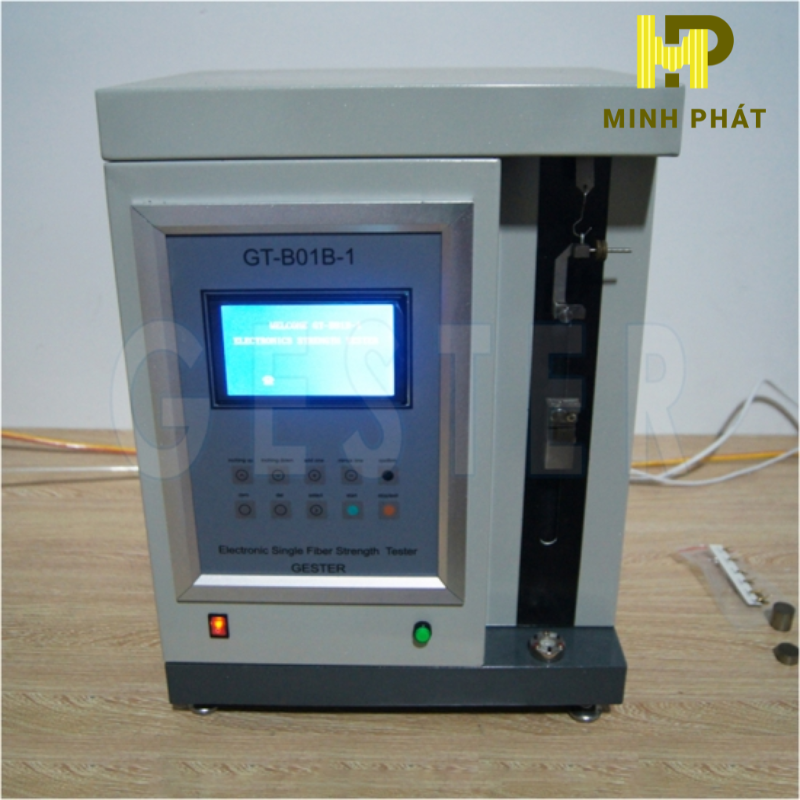

Electronic Single Fiber Strength Tester GT-B01

Application:

Electronic Single Fiber Strength Tester is used for test of tensile strength of various chemical fiber, cotton yarn, wool, silk, linen and glass fiber.

Feature

1.Dynamic Data Sampling Frequency is More than 200HZ, ease to catch peak value, most precisely indicate property of textile material.
2.Sharp blue LCD Panel, the operator simply selects the required test module and test standard.
3.Manually Positioning system with stepper motor and screw rod support.
4.Use Misbishi 16bit MCU, Misbishi 16bit A/D converter, more excellent anti-jamming, more rapid data transfer.
5.Clock auto generating, and be visual consistently.
6.Real time display of on-going test data (Like mean square value,average,max,min,etc).
7.Able to preset tensile force.
8.Force unit:N,Kgf,1b,in,cN can be switched freely.

9.Report,diagram are handled by computer and print out from printer.
