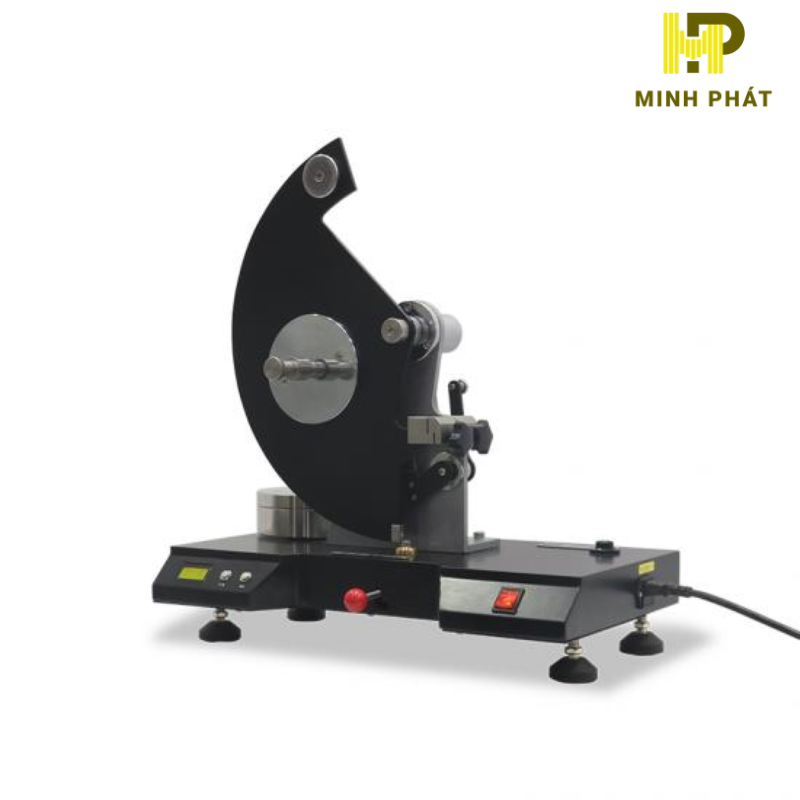

Falling-Pendulum Type Tearing Tester GT-C10B
Product Introduction of elmendorf tear tester
Application:
This Elmendorf Tearing Tester can be used to test the Determination of tear resistance of textile, non-woven fabrics, paper, paperboard, thin film, ventilation tape, sheet metal etc.
Standards:
Test for Textile: GB/T 3917.1, ASTM D 1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149
Test for Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974, ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, SNV 198482, TAPPI T414, UNI 6444
Test for Plastic: GB/T 11999, ISO 6383-2, JIS K 7128-2, NF T54 141
Test for Non-woven fabrics: ASTM D 5734, WSP 100.1
Dimensions of elmendorf tear tester
Feature of tearing tester
- This Falling-Pendulum Type Tearing Tester LCD display, simple to operate and easy to understand.
- Microprocessor can automatically detect and analyze data. It features precision test, reliable performance and simple operation.
- The tearing tester all can meet the related requirements of GB/T3917.1-2009 .
- Apply to the determination of tear strength of various woven fabrics and other materials, such as paper, plastic sheets, film, electrical tape, sheet metal and so on.
Key Specifications of elmendorf tear tester
| Model | GT-C10B |
| Range of tearing force | 0～16N (A) |
| 0～32N (A+B) | |
| 0～64N (A+B+C) | |
| Accuracy | ≤ ±1%F·S |
| Rip Length | 43mm |
| Power Supply | AC220V 50Hz 20W |
| Dimensions | 400×210×395mm |
| Weight | 30kg |

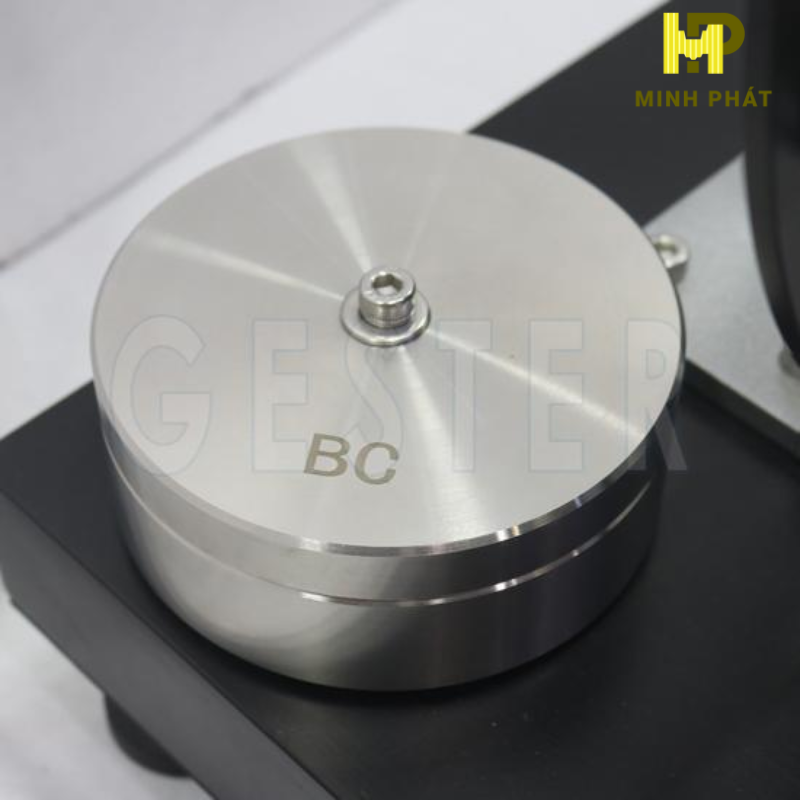

| Standards accessories | Pendulum B (16N) 1pc |
| Pendulum C (32N) 1pc | |
| Sample Template 1pc | |
| Power Line 1pc |
Application Industry of elmendorf tear tester
All kinds of Below materials can be tested on the Falling-Pendulum Type Tearing Tester GT-C10B
